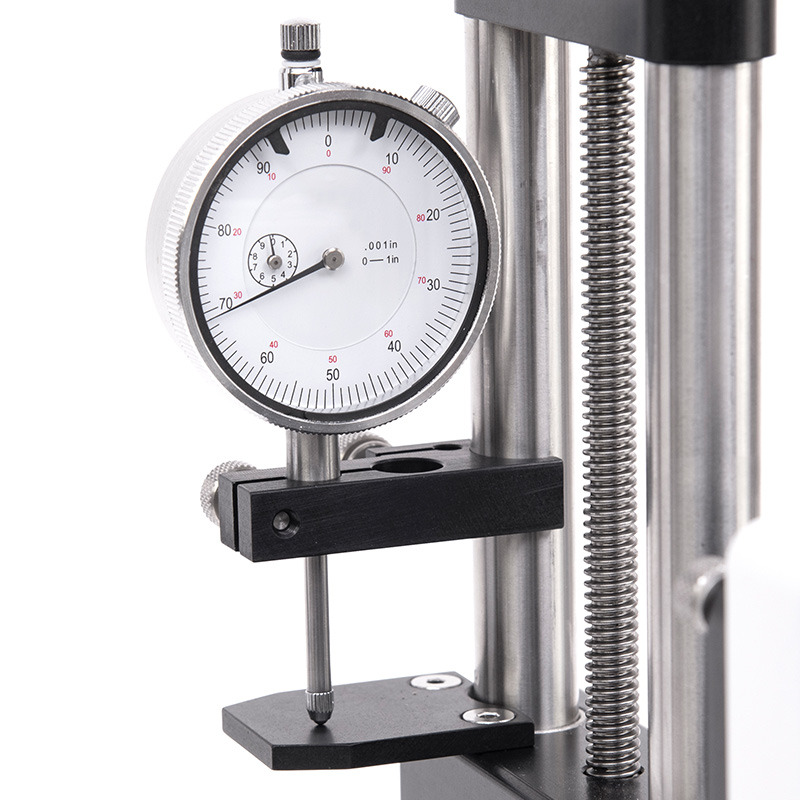

![ES20, Optional ES001 25mm / 1" dial drop indicator option. Set of brackets is also available without indicator.](/products/125946/large/gallery9.jpg ". Optional ES001 25mm / 1" dial drop indicator option. Set of brackets is also available without indicator.")
![ES20, Optional ES002 25 mm / 1" digital drop indicator option. Set of brackets is also available without indicator.](/products/125946/large/gallery10.jpg ". Optional ES002 25 mm / 1" digital drop indicator option. Set of brackets is also available without indicator.")
ES20 hand wheel operated manual force test stand
Discover the ES20, a hand wheel-operated force test stand designed to provide superior motion control in tensile and compression testing. With a capacity of up to 500 N and a total travel distance of 229 mm, this equipment is ideal for a variety of applications in environments with limited space.
Highlighted Features:- Versatility and Precision: Equipped with a hand wheel that allows fine adjustment of movement, ensuring precise and consistent results.
- Compact Design: Its lightweight of just 4.5 kg and compact structure make it perfect for laboratories and workshops with limited space.
- Broad Compatibility: Perfect for use with Mark-10 digital force gauges and accessories, facilitating the setup of complete testing solutions.
- Customization Options: Available with kits to mount a dial indicator, providing flexibility in measurement and displacement tracking.
For more information on how the ES20 can enhance your force testing, contact us.
Features
- Operated by hand wheel for precise control during testing.
- Includes mounting holes for secure and stable bench mounting.
- Compact and lightweight design for easy handling and efficient use of space.
- Features a large base plate with 5 #10-32 holes, allowing for versatile fixture mounting.
- Optional 25.4 mm dial indicator travel kit available to enhance measurement precision.
- Compatible with all Mark-10 force gauges, accessories, and grips, ensuring extensive usability.
- Competitor force gauge mounting kits also available, offering greater flexibility for various testing needs.
The ES20 Manual Force Test Stand comes with:
- Allen wrench set
- Hand wheel
- 4 Thumb screws for force gauge
Manual test stand comparison
| Model | Force capacity | Maximum test travel | Loading method | Travel rate | Maximum, sample clearance |
|---|---|---|---|---|---|
| ES05 | 150N | 38mm | Spring lever | 25.4mm per lever turn | 223mm |
| ES10 | 500N | 229mm | Spring lever | 26.7mm per lever turn | 229mm |
| ES20 | 500N | 229mm | Upper manual wheel | 1.5mm per wheel turn | 229mm |
| ES30 | 1000N | 330mm | Side manual wheel | 1.3mm per wheel turn | 356mm |
| TSA750(H) | 3750N | 95mm (with travel stops) 152mm (without travel stops) |
Rack and pinion lever, adjustable in 30° increments | 76.2mm per lever turn | Vertical: 267mm Horizontal: 368mm |
| TSB100 | 500N | 95mm (with travel stops) 152mm (without travel stops) |
Rack and pinion lever, adjustable in 30° increments | 76.2mm per lever turn | 330mm |
| TSC1000(H) | 5000N | 89mm | Inline manual wheel | 2.5mm per wheel turn | Vertical: 254mm Horizontal: 330mm |
| TSF(H) | 5000N | 102mm | Side manual wheel | 0.34mm per wheel turn | Vertical: 356mm Horizontal: 459mm |
| - Maximum test travel and/or free space depend on the grips or accessories used during testing. The dimensions specified are without grips or accessories. - Column extensions available for all models except ES05, ES10, and ES20. - Models marked with (H) are available in both vertical and horizontal versions. |
|||||
Dimensions
Size measurements for the ES20 Manual Force Test Stand
All sizes in inch and (mm)
Series-3 Digital Force Gauge
- High-speed 2.000 Hz sampling rate
- USB data output of continuous or individual data points
More details
Series-4 Advanced Digital Force Gauges
- High-speed 3.000 Hz sampling rate
- USB, RS-232, Mitutoyo, and analog outputs
More details
Series-5 Advanced Digital Force Gauge
- ±0,1% accuracy
- High-speed 7.000 Hz peak sampling rate
- 1.000-point data memory with statistics and outputs
More details
Accessories
ES001 Dial Indicator / Distance Meter
- Displays up to 1" of displacement
- Resolution of 0.001"
More details
ES002 Digital Indictator / Distance Meter
- Displays up to 1" (25.4mm) of displacement
- Resolution of 0.0005" (0.01 mm)
More details
Specifications
| Load capacity: | 500 N (50 kg / 100 lb) |
| Maximum travel: | 229 mm (9") |
| Loading Method: | Top-mounted hand wheel |
| Travel Rate | 2,1mm (0.083") per revolution |
| Dimensions: | 152 mm x 254 mm x 431 mm (6" x 10" x 13.3") - W x D x H |
| Weight: | 4.5 kg (10 lb) |
| Shipping weight | 5,4 kg (12 lb) |
| Warranty: | 3 years |
