TMG - High Precision Thickness Gauges


Made in GermanyImportant note: The following thickness gauges have been discontinued and replaced by the TMG model:

- CTG-ASTM D1777-2

- FTG-ISO4593

- LTG-ISO2589

- RTG-ISO23529

- TTG-ISO-5084

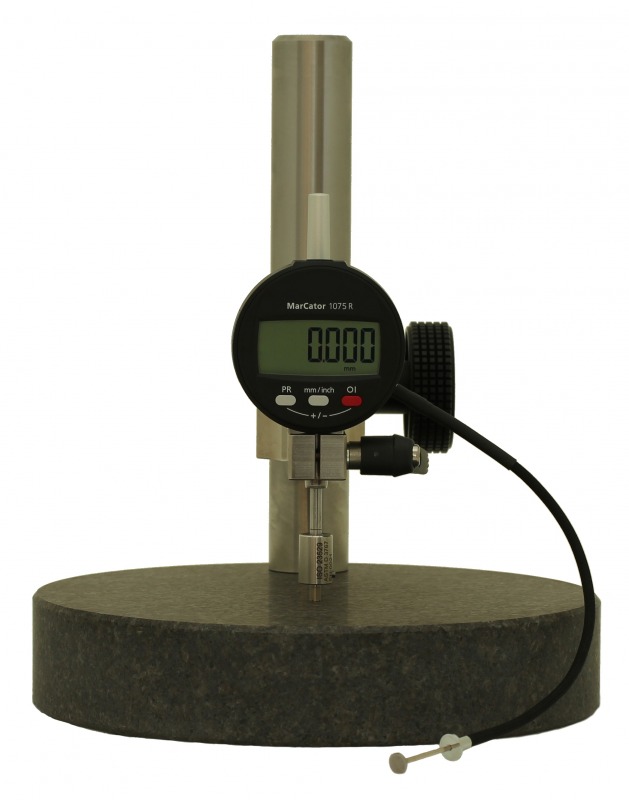

The TMG series of thickness gauges provide extremely accurate and repeatable measurements for a wide range of applications. Their modular and robust design ensures compatibility with multiple international standards, including ISO, ASTM, DIN, and EN.

Available Models:

  • TMG-1: Light configuration. Uses low weights with small footers to apply low pressure (e.g. 28 g with 22 kPa). Ideal for portable setups or sensitive materials.
  • TMG-2: Medium configuration. Typically used with radius footers, suitable for applications requiring moderate pressure such as measuring films and foils.
  • TMG-3: Heavy configuration. Designed for larger weights (e.g. over 2 kg) and wide footers to deliver low pressure with high structural stability. Ideal for industrial use.

Supported Standards:

  • ISO 5084, ASTM D1777 for textiles.
  • ISO 23529, ASTM D3767 for rubber and elastomers.
  • DIN EN ISO 12625-3, ASTM D1777 for waterproofing membranes and more.



Key Features:

  • Maximum Precision: The lifting trigger system ensures accurate measurement by applying the exact pressure required by each testing standard.
  • High-Quality Construction: Laboratory-grade granite bases and stainless steel and aluminium components provide long-term durability, even in humid environments.
  • Modular Versatility: Easily adaptable to different testing standards without the need for multiple devices, thanks to its interchangeable configuration system.
  • Easy to Operate: User-friendly design, ideal for use in laboratory or production settings.

Key Benefits:

  • Reliable Results: Stable pressure application ensures consistent, reproducible measurements over time.
  • Standards Compliance: Fully compatible with leading international standards, offering a versatile solution for quality control and compliance.



Contact us for more information on how TMG thickness gauges can improve your measurement and quality control processes.


Features

  • Data Output: Enables connection to dedicated software for advanced result analysis and integration.
  • Dual Certification: Supplied with either a manufacturer calibration certificate or DAkkS certificate to meet strict regulatory requirements.

Complete Kit

Depending on the selected configuration, the TMG thickness gauge is delivered as a complete set consisting of:

  • Granite measuring table
  • Stainless steel column guide
  • Gauge
  • Measuring insert compliant with the desired standard


In addition and optional:

  • Manufacturer Calibration Certificate
  • DAkkS Calibration Certificate (only dial gauge)
  • Software


Available configurations
ModelBasisNormApplicationFeet Ø (mm)Weight (g) * / Measuring Pressure (kPa)
TMG-1-T TMG-1 ISO-5084Textiles50,5204,0 / 1,0
TMG-1-T1 TMG-1 ASTM D 1777 Option 2Textiles9,5169,0 / 23,4
TMG-1-G TMG-1 ISO-23529 + ASTM D 3767Rubber / Elastomers with a hardness > 35 IRHD4,028,0 / 22,0
TMG-1-G1 TMG-1 ASTM D 3767Rubber / Elastomers with a hardness < 35 IRHD16,0212,0 / 10,0
TMG-1-PT TMG-1 DIN EN ISO 12625-3Paper towels35,7204,0 / 2,0
TMG-1-AB TMG-1 DIN EN 1849-2Flexible sheets10,0160,0 / 20,0
TMG-1-FB TMG-1 ASTM D 1777 Option 1Fiber fabrics, knitwear, texture28,7273,0 / 4,14
TMG-1-FB1 TMG-1 ASTM D 1777 Option 5Blankets and pile fabrics28,746,2 / 0,7
TMG-2-F TMG-2 ISO 4593 + DIN 53370Foils and filmsR40,010 - 50 / -
TMG-3-L TMG-3 DIN EN ISO 2589Leather10,0393,0 / 49,1
TMG-3-FI TMG-3 ASTM D 1777 Option 3Films and glass fibers6,3546,0 / 172,0
TMG-3-GE TMG-3 ASTM D 5199Geosynthetics56,4509,5 / 2,0
TMG-3-P TMG-3 DIN EN 534Paper and cardboard16,02050,0 / 100,0
TMG-3-C TMG-3 DIN EN ISO 3034Corrugated cardboard35,72041,0 / 20,0
* Weight refers to the total weight of the sensor , weight and the measuring spindle. All configurations with the same device base can be combined with each other. Packages with additional accessories for adaptation to another standard are available separately. Contact us for more information.

Dimensions

Dimensions TMG-1
Dimensions-Dimensions TMG-1


All sizes are in mm

Dimensions TMG-2
Dimensions-Dimensions TMG-2


All sizes are in mm

Dimensions TMG-3
Dimensions-Dimensions TMG-3


All sizes are in mm


Specifications

Measuring range:TMG-1 + TMG-3: 12.5mm
TMG-2: 0.8 / 1.8mm (depending on the resolution)
System accuracy:±4µm (or better): TMG-1-G, TMG-1-G1, TMG-1-T1, TMG-1-AB
±7µm (or better): TMG-1-T, TMG-1-PT, TMG-1-FB, TMG-1-FB1
±10µm (or better): TMG-3-L, TMG-3-FI, TMG-3-GE, TMG-3-P, TMG-3-C
Resolution:TMG-1 + TMG-3: 0.001mm
TMG-2: Switchable resolution: 0.005mm, 0.001mm and 0.0002mm (depending on measurement path)
Measuring table:∅200 mm x 40 mm made of granite
Column guide:∅30 mm made of stainless steel
Measuring system:Mahr dial gauge
Units:Optionally mm or inch
Display:LCD display
Test surface and measuring pressure:Corresponds to the respectively listed ASTM, DIN, EN and ISO standards
Battery typeCR 2032 (3V Lithium)
Output signal:RS-232C and USB
Weight:TMG-1 + TMG-2: ca. 7kg
TMG-3: ca. 8kg
