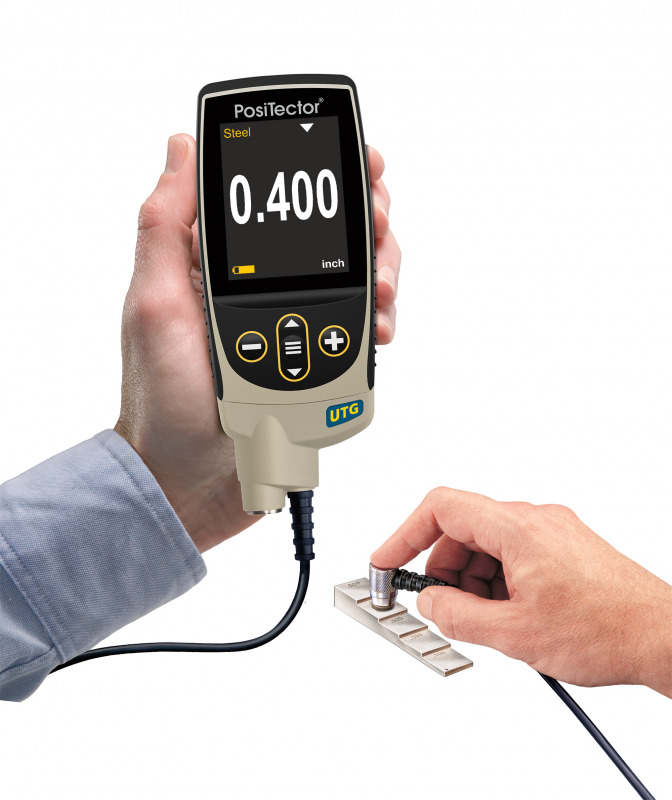

PT-UTG Ultrasonic Thickness Gauge
Advanced Precision for Industrial Environments
Explore the PT-UTG from Checkline, an ultrasonic thickness gauge designed to precisely measure wall thickness and assess corrosion on materials such as steel, plastic, and others. Ideal for applications where access is limited to one side, this device is essential for inspecting pipes, tanks, and similar structures.
Key Features:
- Thru-Paint Technology: Allows for the measurement of metal thickness under the coating without the need to remove it, optimizing inspection time and costs.
- Robust Construction: Designed to withstand harsh industrial environments with resistance to solvents, acids, oils, water, and dust.
Special Features:
- Large and Clear LCD Display: Facilitates the reading of measurements and menu navigation, even in low-light environments.
- Extensive Storage Capacity: Can store up to 100,000 readings, allowing for detailed and efficient data management.
User Benefits:
- Ergonomic and Portable Design: Compact and easy to handle, ideal for quick and efficient measurements in the field or laboratory.
- Compatibility with Multiple Probes: Accepts probes for a variety of applications, increasing its versatility.
The PT-UTG from Checkline is a reliable and precise solution for those who need detailed and consistent thickness measurements, providing cutting-edge technology in an accessible and easy-to-use design.

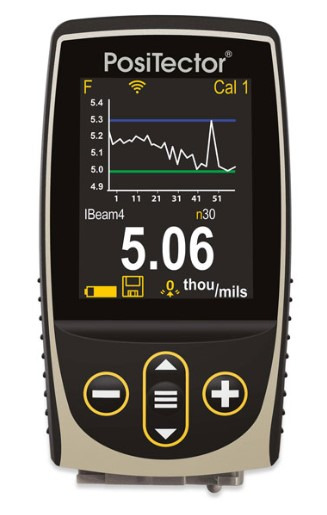

Step 1: Select a body
(Standard or Advanced features)
| Standard (1) | Advanced (3) |
|---|---|
 |
 |
| Feature | Standard (1) | Advanced (3) |
|---|---|---|
| Hi Contrast LCD Display | Monochrome | Color |
| Reading Storage Capacity | 250 in one group | 100,000 in up to 1000 groups |
| Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring | ||
| Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits | ||
| Min Scan - measurement rate of up to 20 readings per second with on-screen min and max for quick inspection over a large area | ||
| A Scan - with adjustable Gain with screen capture for further analysis and documentation | - | |
| B Scan - display in which a cross sectional profile of the test material is represented | - | |
| Batch Annotation - Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. | - | |
| Bluetooth Wireless Technology for data transfer to a PC or optional portable printer | - | |
| Onscreen help, real time graphing, picture prompting and batch notes | - |
Step 2: Select Probe Style
Corrosion Probe
Measures the wall thickness of materials such as steel, plastic and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side
- 5 MHz dual element transducer with wear resistant PEEK probe tip
- Automatic V-Path compensation for thin materials
Multiple-Echo Probe
Features Thru-Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating. The most accurate method to measure the remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense. Also ideal for measuring on sandblasted materials or other applications requiring a durable wear face.
- 5MHz contact probe with wear resistant Alumina probe tip
- Multiple Echo technique averages 3 or more echoes for accurate and reliable readings
- Most accurate method to measure remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense.
- Toggle easily between:
- Multiple Echo mode to eliminate coating thickness
- Single Echo mode to detect pits and flaws, and to increase the measurement range

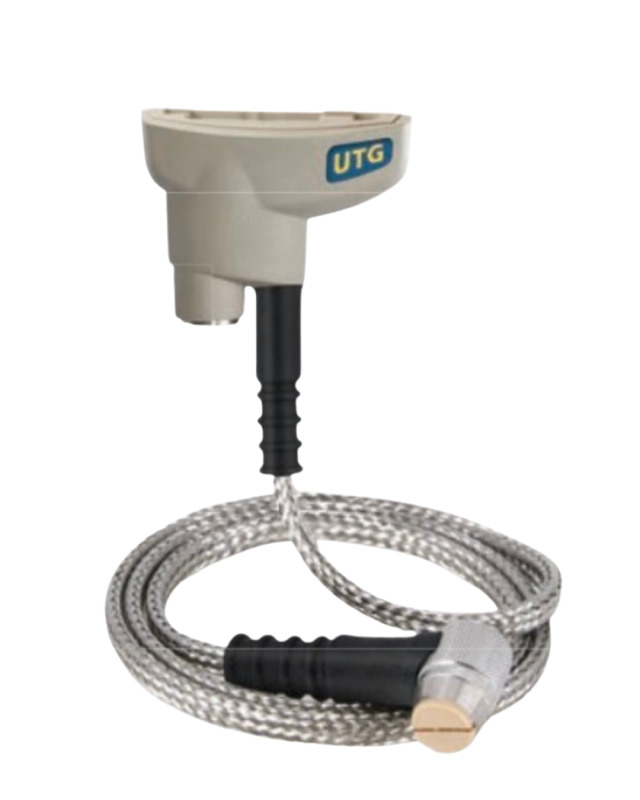

Xtreme Corrosion Probe
The Xtreme Corrosion Probe (CX) is the ruggedized version of the standard Corrosion Probe (C), designed for inspectors working in harsh, abrasive, or high-use environments where probe cable durability is critical. It offers the same ultrasonic measurement performance, but adds a braided stainless steel cable and heavy-duty strain reliefs for improved resistance to wear, pulling, bending, and demanding field conditions.
Unlike the Multiple-Echo probe (M), the UTG CX does not measure through paint; its advantage over the standard Corrosion Probe is not a different measurement mode, but a more durable, field-ready probe construction.
| Corrosion (UTG-C) | Multiple Echo (UTG-ME) | Xtreme Corrosion (UTG-CX) | |
|---|---|---|---|
| Type of probe | Dual 5 MHz element | 5 MHz contact | 5 MHz dual element |
| Pass-through paint capacity (Multiple echo) |
No | Yes | No |
| Measuring range* (Single echo) |
0.040" to 5.000" 1.00 to 125.00 mm |
0.100" to 5.000" 2.50 to 125.00 mm |
0.040" to 5.000" 1.00 to 125.00 mm |
| Measuring range* (multiple echo) |
N/A | 0.100" to 2.500" 2.50 to 60.00 mm |
N/A |
| Resolution | 0.001" / 0.01 mm | 0.001" / 0.01 mm | 0.001" / 0.01 mm |
| Accuracy | ±0.001" / ±0.03 mm | ±0.001" / ±0.03 mm | ±0.001" / ±0.03 mm |
| Material Surface Temp | -40° to +150° C (-40° to +300° F) | -40° to +150° C (-40° to +300° F) | -40° to +150° C (-40° to +300° F) |
*Measuring range is for carbon steel and depends on surface condition, temperature and material.
Color Model (3) Only. A display in which the received pulse amplitude is represented along y axis and the travel distance of the ultrasonic pulse is represented along the x axis.
Color Model (3) Only. A display in which a cross sectional profile of the test material is represented.
| Material (Menu Option) | Longitudinal Velocity | Min Range* | Max Range* | |||
|---|---|---|---|---|---|---|
| in/us | m/s | in | mm | in | mm | |
| CAST IRON (Iron) | 0.179 | 4547 | 0.040 | 1.02 | 5.000 | 127.00 |
| SS 303 (SS303) | 0.223 | 5664 | 0.040 | 1.02 | 5.000 | 127.00 |
| STEEL 1018 (Steel) | 0.233 | 5918 | 0.040 | 1.02 | 5.000 | 127.00 |
| Al 2024 (Alum) | 0.251 | 6375 | 0.050 | 1.27 | 5.000 | 127.00 |
| PLEXIGLAS (Plexi) | 0.106 | 2692 | 0.040 | 1.02 | 2.000 | 50.80 |
| PVC (PVC) | 0.094 | 2388 | 0.035 | 0.89 | 2.000 | 50.80 |
| POLYSTYRENE (Poly) | 0.081 | 2057 | 0.035 | 0.89 | 2.000 | 50.80 |
| * Range may change depending on surface roughness, Temperature or Material Properties | ||||||
Dimensions
6000-PROBES Probes For Use With 6000 Series
- All probes are supplied with a NIST Traceable calibration certificate
- Compatibility of Positector Bodies with all PosiTector probes
- Simple and efficient conversion between measurement methods and substrates through interchangeable probes
