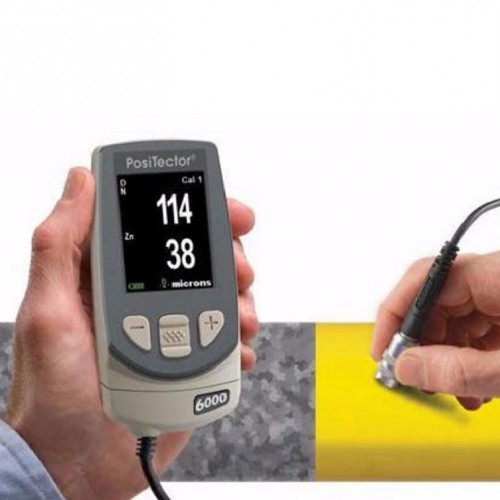

PosiTector 6000FNDS Coating Thickness Gauge


For Duplex Coating Systems

The PosiTector 6000FNDS is an advanced coating thickness gauge specifically designed for accurate and rapid measurement of zinc and paint layers in duplex coating systems. This instrument is ideal for applications where corrosion protection methods are combined, such as on galvanized steel structures coated with paint or powder coatings.

Highlighted Features:

  • Dual Measurement Technology: Combines magnetic and eddy current principles to accurately measure individual layers of zinc and paint.
  • Advanced Accuracy: Capable of measuring zinc layers down to 13 µm and provides accuracy of up to +(1 µm + 1%) on thin layers.
  • Duplex Mode: Allows simultaneous assessment of paint and zinc layers with a single reading, facilitating quick and efficient evaluation.
  • Rugged Design: Equipped with an impact-resistant colour touchscreen and a cover rated IP65 for resistance to dust, water, and other environmental elements.

Key Benefits:

  • High Durability: Designed to withstand adverse environmental conditions, ideal for use outdoors and in challenging industrial environments.
  • Simplified Usability: Does not require calibration adjustments for most applications, allowing for quick and hassle-free measurements.
  • Extensive Compatibility: Accepts all PosiTector probes, transforming the gauge into a versatile tool for different types of measurements on surfaces.



Contact us for more information on how the PosiTector 6000FNDS can optimize the measurement of coatings in your duplex coating system projects, and to receive personalized advice on the ideal solution for your application.


Features

  • Enhanced Connectivity: Includes USB, WiFi, and Bluetooth connection options, allowing for easy integration and data transfer with PC management systems and mobile devices.
  • HiLo Alarm Function: Audibly and visually alerts when measurements exceed preset limits, ensuring compliance with quality control specifications.
  • Multilingual and Customizable: Menu available in several languages and reversible display to accommodate any usage situation.

Complete Kit

The PosiTector 6000 FNDS comes with:

  • Standard or Advanced gauge body
  • FNDS probe
  • Protective rubber holster with belt clip
  • Wrist strap
  • 3 AAA alkaline batteries
  • Nylon carrying case with shoulder strap
  • Protective lens shield
  • USB cable
  • Long Form Certificate of Calibration traceable to NIST or PTB
  • Free Posisoft Desktop Software


Probe - Feature Comparison Chart

Feature Comparison Chart Standard
(1)
Advanced
(3)
Hi Contrast LCD Display Color screen
Color
color screen
Color
General Features Standard
(1)
Advanced
(3)
FAST mode - faster measurement speed for quick inspection
SCAN Mode - take continuous readings without lifting the probe -

Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits

Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring

Onscreen help, real time graphing, picture prompting and batch notes -
Memory Features & Capacity Standard
(1)
Advanced
(3)
Reading Storage Capacity 1000 in one group 250,000 in up to 1000 groups
Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. -
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels -
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings -
Multiple stored calibration adjustments for measuring on a variety of substrate conditions -
Connection Options Standard
(1)
Advanced
(3)
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality -
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer -
PosiSoft Solutions Standard
(1)
Advanced
(3)
PosiSoft Desktop Software Desktop software for PC or Mac computer
PosiSoft USB Drive Access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers
PosiSoft.net (formerly PosiTector.net) Cloud-based application offering centralized management of PosiTector readings
PosiSoft Mobile Gage-based software application featured in all PosiTector Advanced instruments -



FNDS
FXS Xtreme-sonde
Range: 0 - 1500 µm
Minimum Zinc Thickness: 13 µm
Paint Layer Accuracy*: ±(1 µm + 1%) 0 - 50 µm
±(2 µm + 1%) > 50 µm
Zinc Layer Accuracy*:

±(2 µm + 1%) 0 - 50 µm
±(4 µm + 1%) > 50 µm

*Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading.


Downloads

Specifications

Measuring principleMagnetic induction principle (Ferrous)
Eddy-current principle (Non-Ferrous)
DisplayBacklit & Reversible LCD
Data Output USB - Standard & Advanced Models
Bluetooth / WiFi - only the Advanced Models
Surface Temp.Maximum: 49 °C
Power3 AAA batteries, Included
Protection ClassMeets or exceeds IP5X, Solvent, Acid, Oil, Water & Dust resistant
Calibration CertificateCertificate of Calibration showing traceability to NIST included
Min. Concave Radius1 inch (2" OD)
StandardsISO 2178/2360/2808, PrEN ISO 19840, ASTM B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others
Dimensions137 x 61 x 28 mm
Weight140 gr
Warranty2 Years

Buy Now

Products

Product
Price
Quantity
132526
PosiTector-1- Basic Body, Standard Gauge Body without probe
€ 325,00
132528
PosiTector-3-Advanced Body Only
€ 774,00

Accessories

Product
Price
Quantity
135638
PosiTector 6000GP-FNDS-Probe, Cabled Duplex Coating Probe for PosiTector
€ 1.074,00
130761
PosiSoft - Analysis Software for Windows- free download

133045
PRINTERBT Bluetooth Printer for PosiTector Advanced
€ 388,00
131193
PAPERBT Printer Paper - 10 Rolls for the Bluetooth Printer
€ 23,00
137143
USBAC USB/AC Adapter Power Kit for PosiTector
€ 51,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
