For Textiles and Flexible Materials

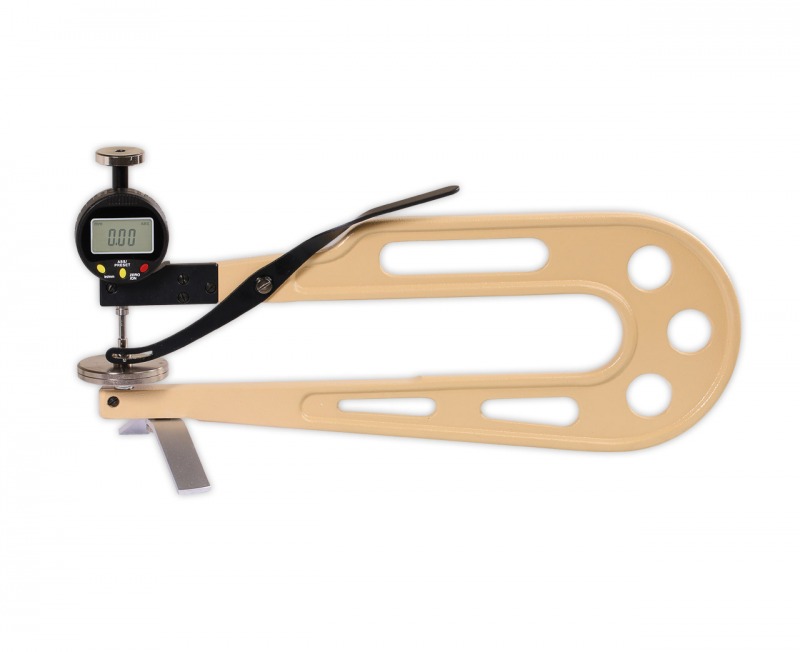

The MTT thickness gauge is designed for quick, comparative thickness measurements across a wide range of materials, including non-woven fabrics, textiles, felts, geo-materials, paper, floor coverings, leather, and foils. While it does not strictly comply with DIN, EN, and ISO standards, its design is based on the pressure and feeler shape requirements of the DIN EN ISO 5084 standard, making it a reliable tool for preliminary evaluations and internal quality control checks.
It is available in two versions with a 300 mm jaw depth: one with a measuring range of 0 to 10 mm and another with an extended range of 0 to 25 mm, allowing it to accommodate both thin and thicker materials.
Key Features:
Main Benefits:
Contact us for more information about the MTT and discover how it can help you optimise your thickness checks quickly and efficiently.
Model | Standard | Appliction | Feeler Ø | Feeler shape cm² | Pressure |
---|---|---|---|---|---|
MTT-10-300T | similar to DIN EN ISO 5084 | Textiles and Non- woven textiles | 50.42 | 20 | 1 kPA |
MTT-10-300V | similar to DIN EN ISO 9073-2 | Standard fleece | 50.42 | 25 | 0.5 kPA |
MTT-10-300L | similar to DIN EN ISO 2589 (formerly DIN 53326) | Leather | 10 | 0.785 | 50 kPA |
MTT-25-300T | similar to DIN EN ISO 5084 | Textiles and Non- woven textiles | 50.42 | 20 | 1 kPA |
MTT-25-300V | similar to DIN EN ISO 9073-2 | Standard fleece | 50.42 | 25 | 0.5 kPA |
MTT-25-300L | similar to DIN EN ISO 2589 (formerly DIN 53326) | Leather | 10 | 0.785 | 50 kPA |
Measuring Range | 0-10 mm / 0-25 mm |
Resolution | 0.01 mm |
Depth of Jaws | 300 mm |
Display | LCD 4 Digit, 8 mm tall |
Pressure | 1 kPa (gauge, feeler, weight) |
Feeler shape | 50.5 mm Ø = 20 cm² |
Dimensions | 400 x 65 x 200 (L x W x H) |
Weight | 1245 gr |
