LTT Torque and Angle Analyzer with integrated Bench Stand

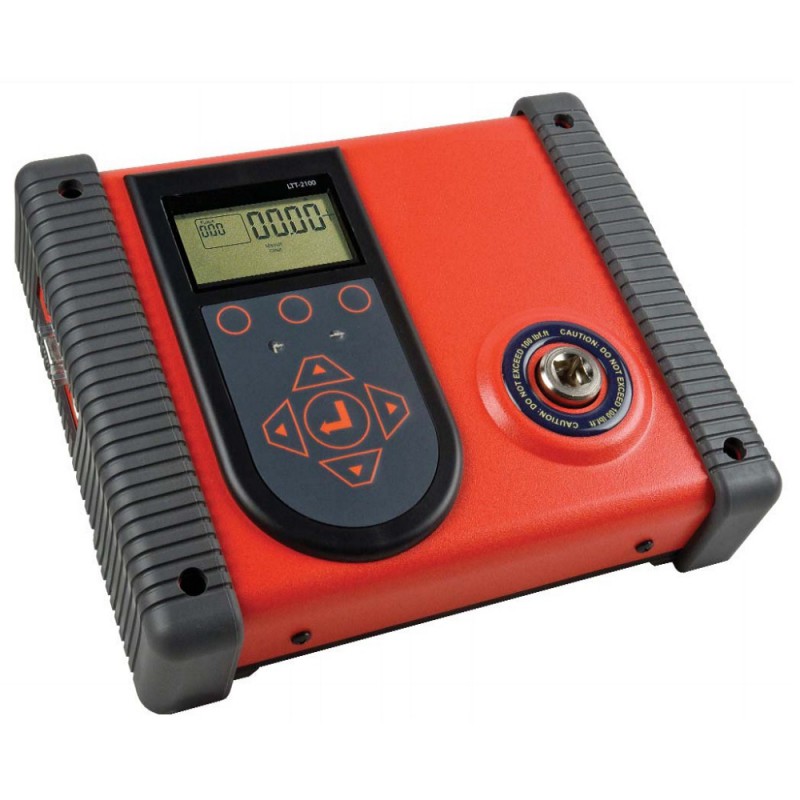

The new LTT is the next generation of torque analyzer. It offers “EZ-Plug & Play” with instant auto recognition with transducers. The LTT offers tool testing, graphing capabilities and a graphical menu for easy navigation.
The LTT includes three PC Windows based software programs:
Torque Meter Interface Program - for sensor calibrations, meter calibration and tool tests.
Torque Meter Boot loader - for updating the LTT operating systems.
Statistics Calculator - for SPC, CP & CPK calculations.
Features
- Accuracy +/- 0.5% of reading from 20% to 100% of full scale.
- Provides “EZ-Plug & Play.” Features an instant auto-recognition system of the transducer connected to the LTT.
- Built-in Tool Tests operation.
- Stores a total of 2500 data points.
- Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm). Two units of force measurements: (lbf and kN)
- Recommended for all hand screwdrivers, wrenches or power tools.
- "Flash" memory allows upgrades to be done by the user in the field & internet through the USB port.
- Selection of six operating modes: (Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test).
- Supplied with NIST-Traceable Certification of Calibration
| Model | Ranges | Range | |||
| LTT-10i | 1-10 lbf-in 11.3 - 113 cN-m 1.2 - 11.5 kgf-c | 1/4" F/Sq | |||
| LTT-25i | 2.5-25 lbf-in 28.25 - 282.5 cN-m 2.9 - 28.8 | 1/4" F/Sq | |||
| LTT-50i | 5 - 50 lbf-in 56.5 - 565 cN-m 5.8 - 57.6 kgf | 1/4" F/Sq | |||
| LTT-100i | 10 - 100 lbf-in 113 - 1130 cN-m 11.5 - 115 k | 1/4" F/Sq | |||
| LTT-250i | 25 - 250 lbf-in 282.5 - 2825 cN-m 28.8 - 288 | 1/4" F/Sq | |||
| LTT-50F | 5 - 50 lbf-ft 6.8 - 67.8 N-m 0.7 - 6.9 kgf-m | 3/8" F/Sq | |||
| LTT-100F | 10 - 100 lbf-ft 13.56 - 135.6 N-m 1.4 - 13.8 | 1/2" F/Sq | |||
| LTT-250F | 25 - 250 lbf-ft 33.9 - 339 N-m 3.5 - 34.5 kg | 1/2" F/Sq |
The LTT allows you to set up and create tool tests and save the readings so you can export the data to a PC for documentation. It’s the ideal solution for organizing and storing test data for ISO and SPC documentation.
The ability to graph a dynamic rundown allows joint analysis. Great resource to evaluate create or confirm a torque specification or toll being used in production.
The "Statics Calculator" allows operators to perform basic SPC, CP and CPK calculations.
| Transducer | Cable Item # |
|---|---|
| RTSX-AA | 072000 |
| BLRTSX | 072001 |
| BMX | 072002 |
| SDX | 072004 |
| RTSX | 072005 |
| ETX | 072006 |
| *Contact us for connecting a SMX to the LTT | |
Universal Charger (100 - 240 VAC)
USB Cable
Software - Torque Meter Interface Program
Software - Torque Meter Boot loader
Software - Statics Calculator
Protective Cover

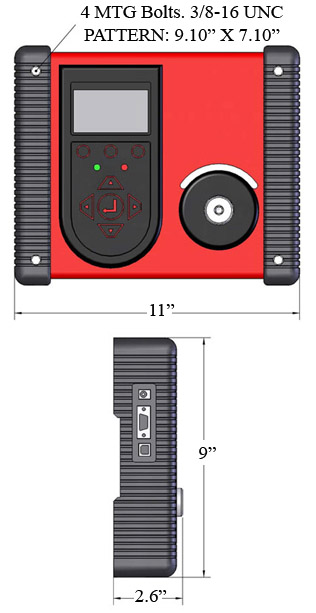

Dimensions
BLRTSX Brushless Rotary Torque Transducer
- Accuracy +/-.25% of full scale.
- The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
More details
