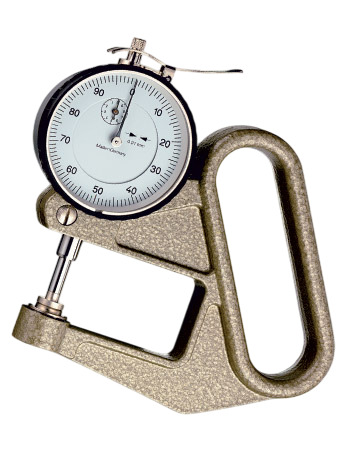

JA-50 Thickness Gauge


Made in GermanyThe JA-50 thickness gauge is a high-precision analogue instrument designed to measure the thickness of a wide variety of materials, including leather, textiles, cardboard, felt, rubber, sheet metal, films, plastics and more. Its compact and robust design makes it ideal for both laboratory and industrial use.

Key Features:

  • High resolution: 0.01 mm reading accuracy, ideal for applications requiring reliable and consistent results.
  • Lever-operated mechanism: Opening via lifting device with automatic closing for safe and convenient use.
  • Robust construction: Lightweight and durable aluminium housing ensures stability during continuous use.
  • Ergonomic design: Easy zero setting using the knurled bezel for quick adjustments.



Main Benefits:

  • Versatile usage: Suitable for various materials and industries, from textiles to technical applications.
  • Precise measurement: Uses a defined spring force to ensure uniform results.
  • Tabletop usability: Can be operated on a flat surface thanks to the optional swing-out foot, improving ergonomics for repetitive tasks.



Contact us to learn how the JA-50 can enhance your quality control and inspection processes.


Features

  • Measuring range: 0 to 10 mm.
  • Available feeler types: Compatible with five different feeler shapes (a, b, c, d, e) for varied applications (sold separately)
  • Analogue dial: Easy-to-read scale for quick result interpretation.

Complete Kit
Delivery includes:
Thickness gauge with transport packing case.

Feeler Shape

To place your order, please indicate the desired feeler, for example: JA-50-B for a gauge with feeler B. This means that NOT all feelers are included in the package!


Simple controller interface

Feeler: A

For rubber, felt*, soft materials*, non-wovens*, etc.
*Does not meet any DIN EN ISO standards. Custom type A feelers with diameters from 30 to 56 mm available on request at additional cost.

Modular

Feeler: B

For rubber, felt*, soft materials*, non-wovens*, etc.
*Does not meet any DIN EN ISO standards.

Limit switches

Feeler: C

For soft leather, cardboard, paper, films, etc.

Seamless sensor

Feeler: D

For hard leather, plywood, fibre boards, etc.

Easy to service electronics

Feeler: E

For sheet metal, etc.

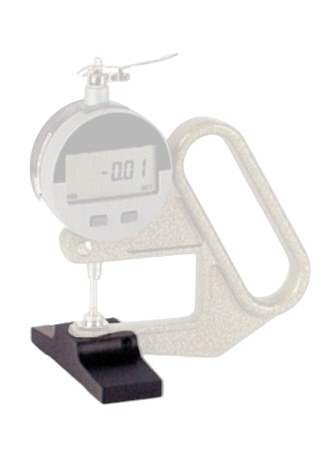

Available Accessory: Table Stand for Thickness Gauges
Table stand

This table stand allows handheld thickness gauges to be converted into benchtop units, improving stability and ease of use.

table stand dimensions

Dimensions in mm


Specifications

Resolution:0.01 mm
Measuring range:10 mm
Depth of jaw:50 mm
Scale diameter:58 mm
Measuring pressure:1.0 N
Feeler shape:a,b,c,d or e
Measurement by spring load:Operating by lifting device - self closing
Weight, net:300 g

Buy Now

Products

Product
Price
Quantity
125997
JA-50-A Thickness Gauge with lifting device Feeler shape A
€ 150,00
125998
JA-50-B Thickness Gauge with lifting device Feeler shape B
€ 150,00
131205
JA-50-C Thickness Gauge with lifting device Feeler shape C
€ 150,00
139679
JA-50-D Thickness Gauge with lifting device Feeler shape D
€ 150,00
126001
JA-50-E Thickness Gauge with lifting device Feeler shape E
€ 150,00

Accessories

Product
Price
Quantity
126836
Table Stand for Thickness Gauge
€ 81,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
