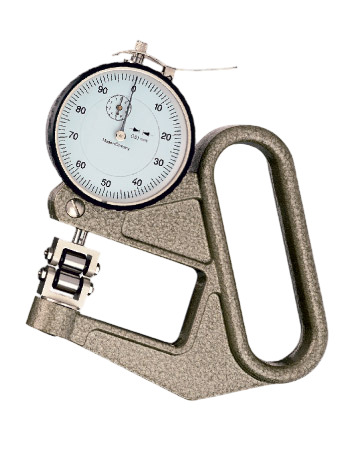

J-50-R Thickness Gauge
For Moving Materials
The J-50-R thickness gauge is specially designed for accurate measurements on moving materials such as wires, tapes, or foils without stopping the production line. Thanks to its precision rollers, it enables stable measurements at speeds of up to 150 m/min, making it ideal for dynamic industrial processes.
Key Features:
- Precision Rollers: Equipped with 8.7 mm wide and 8.4 mm diameter rollers, designed specifically for measuring moving materials.
- High-Speed Operation: Allows accurate measurements at line speeds up to 150 m/min.
- Automatic Operation: Measurement via spring force with lever-actuated opening and self-closing mechanism.
- Adaptable Design: Lower roller is supplied with flanges as standard, with a flange-free option available for wider materials.
Main Benefits:
- Ideal for Inline Processes: Enables measurements without halting production, saving time and resources.
- High Stability: Rollers mounted on bearings ensure smooth material movement during measurement.
- Compact and Lightweight: Easy to handle and integrate into various workstations.
Contact us to learn how the J-50-R can optimise quality control on your production lines.
Features
- Available Resolutions: Models available with 0.01 mm and 0.005 mm resolution.
- Consistent Precision: Measuring range up to 5 mm with reliable performance in demanding work environments.
- Grounded Rollers: Ensure safe discharge in applications with sensitive materials.
| Model | Resolution | Roller Style | |
| J-50-R | 0.01 mm | Lower roller with flanges |
|
| J-50-RS | 0.005 mm | Lower roller with flanges | |
| J-50-RO | 0.01 mm | Lower roller without flanges |
|
| J-50-RSO | 0.005 mm | Lower roller without flanges |
 |
This desktop stand allows handheld thickness gauges to be converted into benchtop units, improving stability and ease of use. |
 |
Dimensions in mm |
Specifications
| Resolution: | 0.01 mm |
| Measuring range: | 0.01 mm - 5.00 mm |
| Depth of jaw: | 50 mm |
| Scale diameter: | 54 mm |
| Measuring pressure: | 1.0 N |
| Measurement by spring load: | Operating by lifting device - self closing |
| Weight, net: | 300 g |
Buy Now
Products
Product
Price
Quantity
132807
J-50-R Mechanical Thickness Gauge / 50 mm; rollers with flanges / resolution 0.01 mm
