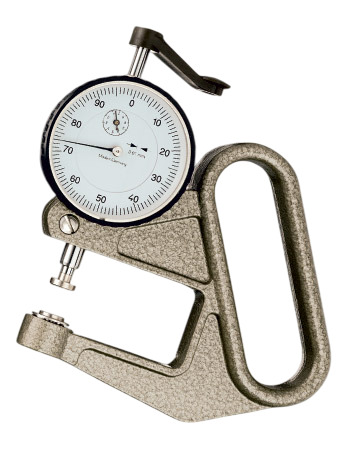

J-50 – Precision Thickness Gauge


Made in GermanyThe J-50 model is a mechanical thickness gauge designed to accurately determine the thickness of materials such as leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood, and plastic components. This instrument combines robust construction with simple manual plunger operation, making it a versatile tool for industrial and quality control applications.

Key Features:

  • Manual Pressure Measurement: Plunger system ensures consistent pressure for reliable and repeatable results.
  • High Precision: Resolution of 0.01 mm, with a measuring range of 0 to 10 mm and jaw depth of 50 mm.
  • Robust Construction: Lightweight and durable aluminium housing for long-term use without operator fatigue.
  • Easy Zero Setting: Quick dial reset via outer knurled ring, no additional tools required.



Main Benefits:

  • Application Versatility: Ideal for measuring a wide range of materials in sectors such as automotive, textile, packaging, and manufacturing.
  • Ergonomic Design: Enables comfortable and stable measurement, even in confined workspaces.
  • Reliable Results: Spring force opening mechanism ensures consistent measurements without external interference.



Contact us for more information on how the J-50 gauge can optimise your inspection and quality control processes.


Features

  • Lightweight and Portable: With a net weight of only 300 g, ideal for mobile use or quick measurements on the go.
  • Compatible with Various Feelers: Available with different feeler shapes (a, b, c, d, e) depending on your specific measurement needs.

Feeler Shape

To place your order, please indicate the desired feeler, for example: J-50-B for a gauge with feeler B. This means that NOT all feelers are included in the package!


Simple controller interface

Feeler: A

For rubber, felt*, soft materials*, non-wovens*, etc.
*Does not meet any DIN EN ISO standards. Custom type A feelers with diameters from 30 to 56 mm available on request at additional cost.

Modular

Feeler: B

For rubber, felt*, soft materials*, non-wovens*, etc.
*Does not meet any DIN EN ISO standards.

Limit switches

Feeler: C

For soft leather, cardboard, paper, films, etc.

Seamless sensor

Feeler: D

For hard leather, plywood, fibre boards, etc.

Easy to service electronics

Feeler: E

For sheet metal, etc.


Available Accessory: Table Stand for Thickness Gauges
Table stand

This desktop stand allows handheld thickness gauges to be converted into benchtop units, improving stability and ease of use.

table stand dimensions

Dimensions in mm


Specifications

Resolution:0.01 mm
Measuring range:10 mm
Depth of jaw:50 mm
Scale diameter:58 mm
Feeler shape:a,b,c,d or e
Spring force:Self opening
Weight, net:300 g

Buy Now

Products

Product
Price
Quantity
130288
J-50-A Mechanical Thickness Gauge
€ 150,00
125993
J-50-B Mechanical Thickness Gauge
€ 150,00
125994
J-50-C Mechanical Thickness Gauge
€ 150,00
136979
J-50-D Mechanical Thickness Gauge
€ 150,00
125996
J-50-E Mechanical Thickness Gauge
€ 150,00

Accessories

Product
Price
Quantity
126836
Table Stand for Thickness Gauge
€ 81,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
