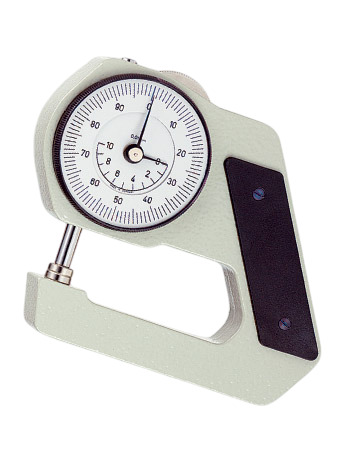

J-45 – Precision Thickness Gauge


Made in GermanyThe J-45 model is a high-precision thickness gauge designed for measuring materials such as leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood, and plastics. With its compact structure and spring force measurement mechanism, this device provides consistently reliable results. Its robust construction and ergonomic design make it an essential tool for industrial environments and quality control processes.

Key Features:

  • Precise Measurement: 0.01 mm resolution for detailed and reliable readings.
  • Self-Closing Mechanism: Opening via lifting wheel ensures constant and controlled measuring pressure.
  • Lightweight Construction: Durable aluminium housing that is easy to handle, even during long work sessions.
  • Manual Zeroing: Easy zero setting by turning the knurled ring on the dial – no additional tools required.



Main Benefits:

  • Measurement Reliability: Ideal for repetitive testing and quality control in various industrial sectors.
  • Portability and Comfort: Compact pocket-sized design with ergonomic handling, suitable for use in the field or laboratory.
  • Versatility: Compatible with a wide range of materials and applications, from production lines to inspection processes.



Contact us for more information on how the J-45 can optimise your measurement processes.


Features

  • High-Visibility Analogue Scale: Ensures quick and clear readings, even in low-light environments.
  • Mechanical Design Without Battery Dependence: Ideal for demanding or extended working conditions.

Feeler Shape

Feeler Shape
Feeler: F

For soft leather, cardboard, paper, foils, knitting needles etc.







Specifications

Resolution:0.01 mm
Measuring range:10 mm
Depth of jaw:45 mm
Scale diameter:40 mm
Measuring pressure:0.8 N
Feeler shape:f
Measurement by spring load:Opening by lifting wheel, self closing
Weight, net:110 g

Buy Now

Product

Product
Price
Quantity
130583
J-45 Thickness Gauge
€ 147,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
