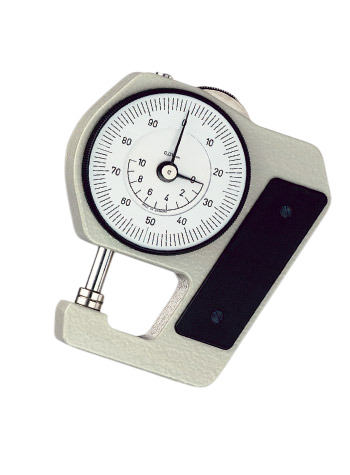

J-15 – High-Precision Pocket Thickness Gauge


Made in GermanyThe J-15 is a compact analogue thickness gauge, ideal for the precise measurement of soft materials such as leather, paper, cardboard, foils, plastics, and textiles. Thanks to its ergonomic pocket-sized design and lifting wheel opening mechanism with self-closing function, it offers a practical and reliable solution for quick inspections in the lab or on-site.

Manufactured from high-quality materials, it features an easy-to-read metric dial and comes standard with a flat 6.35 mm diameter feeler. Its aluminium housing ensures both lightness and durability, while the knurled ring allows for easy zero-setting of the instrument.

Key Features:

  • High Precision: 0.01 mm resolution, suitable for tasks requiring detailed thickness control.
  • Controlled Opening: Lifting wheel mechanism for easy use with self-closing design.
  • Compact Design: 18 mm jaw depth and portable structure, perfect for space-limited environments.
  • Standard Flat Feeler: Supplied with a flat type F feeler, 6.35 mm Ø, ideal for flexible and flat materials.



Main Benefits:

  • Versatile Application: Suitable for a wide range of materials in industries such as leather, printing, textiles, and packaging.
  • Easy Zero Setting: Knurled rotating ring for quick reset to zero, without the need for external tools.
  • German Manufacturing: Assurance of quality, precision, and durability in demanding environments.



Contact us for more information about the J-15 thickness gauge and how it can support your inspection and quality control processes.


Features

  • Clear Analogue Reading: Accurate and highly visible scale allows for quick interpretation of results, even in low-light conditions.
  • Easy Maintenance: Mechanical design with no need for batteries or electronic calibration, ideal for intensive use or variable conditions.

Feeler Shape

Feeler shape
Feeler: F

For soft leather, cardboard, paper, foils, knitting needles etc.


Specifications

Resolution:0.01 mm
Measuring range:10 mm
Depth of jaws:18 mm
Scale diameter:40 mm
Measuring pressure:0.8 N
Feeler shape:f
Measurement by spring load:Opening by lifting wheel, self closing
Weight, net:90 g

Buy Now

Product

Product
Price
Quantity
125990
J-15 Thickness Gauge
€ 127,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
