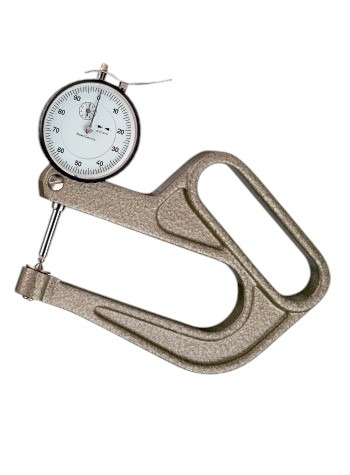

J-100 Thickness Gauge


Made in GermanyThe J-100 thickness gauge is a reliable and precise solution for determining the thickness of a wide range of materials, including leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood, plastics, and other industrial components. Its robust design ensures consistent performance and long-term durability, even in demanding environments.

Key Features:

  • Jaw Depth: 100 mm, ideal for larger sample sizes.
  • High Precision: 0.01 mm resolution for detailed and accurate readings.
  • Plunger-Type Measurement: Manual pressure application enables quick and direct evaluations.
  • Ergonomic Operation: Lever-actuated opening with self-closing mechanism for continuous and comfortable use.



Main Benefits:

  • Versatile Use: Suitable for flexible, semi-rigid and rigid materials across a wide range of industries.
  • Lightweight Yet Durable: Aluminium housing combines robust strength with easy handling.
  • Easy Zeroing: Adjustable zero setting via external knurled ring.



Contact us to discover how the J-100 can be integrated into your quality control processes with efficiency and reliability.


Features

  • Measuring Range: 0 – 10 mm.
  • Net Weight: Approximately 450 g.
  • Bench Stand Compatible: Can be converted to a benchtop model with an optional accessory.

Feeler Shape

To place your order, please indicate the desired feeler, for example: J-100-B for a gauge with feeler B. This means that NOT all feelers are included in the package!


Simple controller interface

Feeler: A

For rubber, felt*, soft materials*, non-wovens*, etc.
*Does not meet any DIN EN ISO standards. Custom type A feelers with diameters from 30 to 56 mm available on request at additional cost.

Modular

Feeler: B

For rubber, felt*, soft materials*, non-wovens*, etc.
*Does not meet any DIN EN ISO standards.

Limit switches

Feeler: C

For soft leather, cardboard, paper, films, etc.

Seamless sensor

Feeler: D

For hard leather, plywood, fibre boards, etc.

Easy to service electronics

Feeler: E

For sheet metal, etc.


Available Accessory: Table Stand for Thickness Gauges
Table stand

This table stand allows handheld thickness gauges to be converted into benchtop units, improving stability and ease of use.

table stand dimensions

Dimensions in mm


Specifications

Resolution:0.01 mm
Measuring range:10 mm
Depth of jaw:100 mm
Scale diameter:58 mm
Measuring pressure:1.0 N
Feeler shape:a,b,c,d or e
Measurement by spring load:Operating by lifting device - self closing
Weight, net:450 g

Buy Now

Products

Product
Price
Quantity
126002
J-100-A Thickness Gauge
€ 189,00
135846
J-100-B Thickness Gauge
€ 189,00
132293
J-100-C Thickness Gauge
€ 189,00
139680
J-100-D Thickness Gauge
€ 189,00
139681
J-100-E Thickness Gauge
€ 189,00

Accessories

Product
Price
Quantity
126836
Table Stand for Thickness Gauge
€ 81,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
