G1101 Medium Parallel Jaw Grip
The Versatile G1101 Parallel Jaw Grip is the lighter version of the G1100 parallel grip.
It has a maximum capacity of 1000 N and a maximum jaw opening of 32.3 mm.
The G1101 grip has a standard set of jaws that are 30 mm wide, there are extended jaws available in 50, 80 and 100 mm
All jaws feature pyramidal jaw faces for a strong grip on a variety of test samples.
These grips are equipped with integrated eye end mounting, This makes it easy to connect to force gauges, force sensors, and test stands.
Attention: This fixture requires an Eye-End-Adapter to be attached to a test stand
Features
- Individually adjustable, serrated jaws.
- Available extended length jaws.
- Eye end mounting
- Max. sample thickness: 32.3 mm

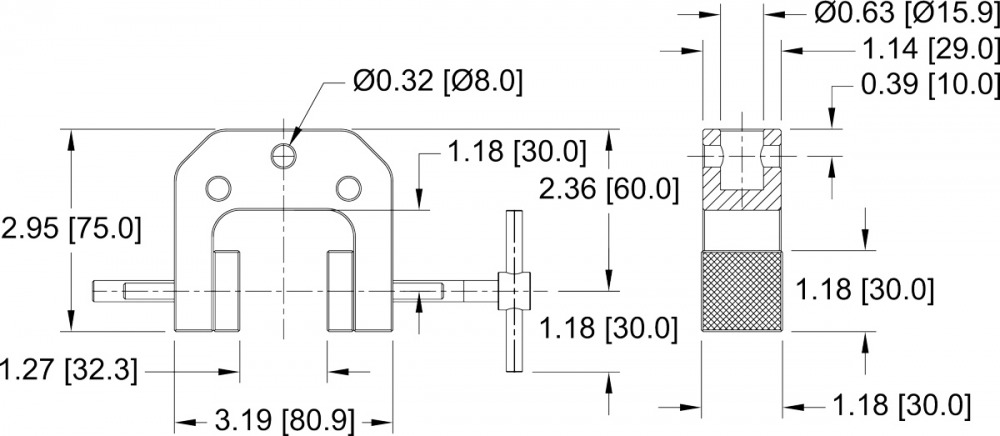

Dimensions
G1101 Medium Parallel Jaw Grip
All sizes are noted in inch with metric sizes in [mm] behind.
G1018 Swivel Adapters
- Swiveling adapter, for use between certain grips and force gauges.
- Capacity G1018-1: 1000 N
Capacity G1018-2: 2500 N - Designed for tensile (pull) testing applications only.
More details
G1100 Large Parallel Jaw Grip
- Individually adjustable, serrated jaws.
- Available extended length jaws.
- Eye end mounting
More details
G1013 Parallel Jaw Grip
- Small parallel grip with individually adjustable jaws
- Capacity 1000 N
- Rugged and compact with serrated jaws
More details
Specifications
| Capacity: | 1 kN |
| Max. sample thickness: | 32.3 mm |
| Housing material: | Aluminum |
| Material clamping jaws: | Hardened steel, 58 RC |
| Weight: | 0.5 kg |
| Verzend gewicht | 0,9 kg |
