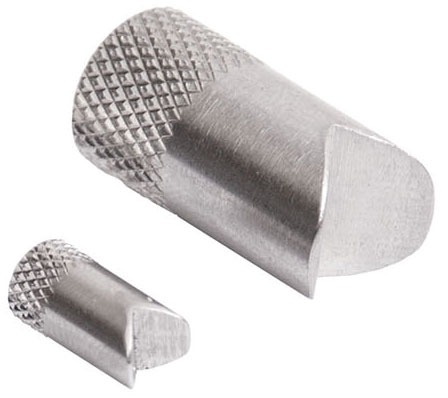

G1027 - G1034 V-Groove Attachments
The G1027 and G1034 V-groove heads are suitable for performing compression tests on round or odd shaped test samples.
These attachments are also part of the basic kit for most Series # Mark-10 force gauges.
The V-groove heads are available in 2 sizes with a capacity of 1000 and 2500 N.
Features
- Available in 2 sizes
- 200 lb / 500 lb capacity,
- Compression testing
Dimensions
G1027 - G1034 V-shape attachment
| Model |
Capacity N (lb) |
Weight kg (lb) |
A mm |
ØB mm |
C |
D |
|---|---|---|---|---|---|---|
| G1027 | 1000 (200) |
0.002 (0.004) |
12.7 (0.5") |
6.4 (0.25") |
#10-32F | 2.0 (0.08") |
| G1034 | 2500 (500) |
0.018 (0.040) |
25.4 (1.00") |
12.7 (0.50") |
5/16-18F | 6.4 (0.25") |
| Model | A (mm) | ØB (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| 12,7 | 6,4 | #10-32F | 2,0 | |
| 25,4 | 12,7 | 5/16-18F | 6,4 |
| Model | Capacity (N) | Weight (g) |
|---|---|---|
| G1027 | 1000 | 1,8 |
| G1034 | 2500 | 18,1 |
