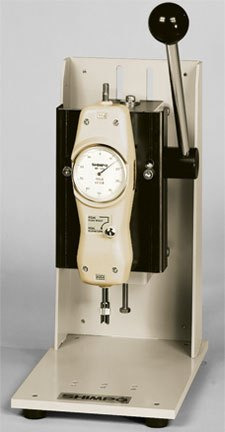

FGS-50S Manual Lever Test Stand
Discover Checkline's FGS-50S, an effective manual test stand for achieving precise and consistent measurement results without the need for an expensive motorised system. This manual lever-operated test stand is ideal for quick tensile and compression tests and adapts perfectly to both laboratory environments and production lines.
Main features:- Measuring capacity: up to 220 N (22 kg), allows precise testing on a wide range of materials such as wire, plastic and composites.
- Universal compatibility: Fits almost all force gauges and offers unrivalled flexibility in sensor selection.
- Robust construction: using aluminium components, this stand ensures long life and stability during testing.
- Versatility of use: Ideal for material testing in confined spaces thanks to its compact design.
Special features:
- Simple set-up: With a reversible base plate that facilitates use on irregular surfaces and increases the adaptability of the device.
- Clear display: Equipped with a highly visible EL display that shows force, displacement and other critical operating values.
To find out more about how the FGS-50S can fulfil your specific force measurement requirements, contact us.
Features
- Manual lever operation for compression (push) measurements
- Adjustable stroke with stop screws: max. 50 mm
- Large platform base accepts special attachments
- Fixed position (clearance) in 3 steps: 40, 70, 100 mm
- Max. capacity 22kg (50 lb)
- Dimensions 150 x 240 x 320 mm (L x W x H)
- Digital length meter optional
The FGS-50S force teststand comes with the following Items:
- Mounting Bracket
- Cable Holder
- 5mm Allen wrench
- 4x Philips head screw M4x8
- 3x Philips head screw M5x6
- 2 Year Warranty
- User Manual
Dimensions
Dimensions FGS-50S
All dimensions are in mm
FGV-XY Digital Force Gauge with USB Output
- Accuracy of ±0.2%
providing superb repeatability - USB, RS-232 & Analog Outputs-- all included!
3 different outputs for data transfer provides maximum flexibility
More details
FGE Hand-held Digital Force Gauge
- Includes Traceable Calibration Certificate
- Accuracy ± 0.2%
- User-selected units of Pounds, Kilograms or Newtons
More details
PS Mechanical force gauge for accurate measurements
- High accuracy mechanical gauge with ± 0.1 % full scale
- Easy to use
- Peak Force Hold function captures transient values and peaks
More details
FB Mechanical force gauge
- Ideal for precision tension and compression measurements in all environments
- Real Time and Peak Force display
- Free manufacturer´s calibration report
More details
FGS-100L Manual Lever Test Stand
- Manual lever operation for compression (push) measurements
- Precision gear movement provides a consistent linear motion that produces repetitively accurate results
More details
Specifications
| Capacity | max. 200 N (20 kg) |
| Stroke | 50 mm |
| Vertical Clearance | 40, 70, 100 mm |
| Dimensions | 150 x 240 x 320 mm (L x W x H) |
| Weight | 10 kg |
| Warranty | 2 year |
