Durable tension meters for a wide range of applications in the textile, fiber and wire industries.
The DN1 analog tension meter shows changing and fluctuating tensions fast, it enables an optimal process adjustment .The built-in material thickness compensator compensates different material diameters for a particular range (only DN1-1000 and higher ranges). The scale (54 mm Ø) is easy to read, the linearized scale provides a clear reading. The filament guide and roller shifting mechanism ensure easy acquisition of the running material.
Model | Ranges | Measuring Head Width* mm | SCHMIDT Calibration Material** | MTC** | ||
DN1-120 | 20-120 | 65 | PA: 0.12 mm Ø | |||
DN1-200 | 20-200 | 65 | PA: 0.12 mm Ø | |||
DN1-400 | 20-400 | 65 | PA: 0.20 mm Ø | |||
DN1-1000 | 50-1000 | 65 | PA: 0.30 mm Ø | |||
DN1-2000 | 200-2000 | 116 | PA: 0.50 mm Ø | |||
DN1-3500 | 400-3500 | 116 | PA: 0.80 mm Ø | |||
DN1-5000 | 400-5000 | 116 | PA: 0.80 mm Ø | |||
DN1-8000 | 500-8000 | 116 | PA: 1.00 mm Ø | |||
DN1-10K | 2-10 daN | 116 | PA: 1.00 mm Ø | |||
DN1-20K-L | 5-20 daN | 216 | PA: 1.50 mm Ø | |||
DN1-30K-L | 5-30 daN | 265 | PA: 1.50 mm Ø | |||
DN1-50K-L | 5-50 daN | 265 | Steel rope: 1.50 mm Ø (7x7x0.20) | |||
Other tension ranges and measuring head widths available on request. Other units of measure available - g or kg. * Depending on model, either width of filament guide or outer distance between outside guide rollers ** Suitable for 95% of applications - PA = Polyamide Monofilament ***MTC = Material Thickness Compensator Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied. |
Code | Roller material | Line Speed | |
---|---|---|---|
Code: Standard | Hardcoated aluminium | 2000 |
![]() |
R12013 | Plasma-coated aluminium Standard for Models DN1-30K-L and DN1-50K-L only | 1000 | ![]() |
K | Hardcoated aluminium | 3500 | ![]() |
H | Plasma-coated aluminium | 5000 | ![]() |
T | Plastic (POM) black | 1000 | ![]() |
W | Nickel-plated steel | 1000 | ![]() |
ST | Hardened steel | 1000 | ![]() |
B | Tempered steel for tire cord | 1000 | ![]() |
CE | Ceramic | 1000 | ![]() |

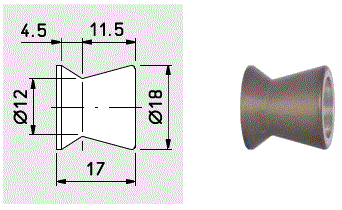

ASY | Hardcoated aluminium , asymmetrical groove | 1000 | ![]() |
U | Hardcoated aluminium (Radius R3) | 2000 | ![]() |
Code A: Air Damping | Code L: Special Lever |
---|---|
This adjustable mechanical air dashpot is recommended for applications in which great fluctuations of the measured tension occur, as in spooling and winding machines. This assures steady tension readings on the scale. |
Facilitates acquisition of the running material when measuring high tensions. Reduces force necessary to extend outer rollers: Recommended for tension ranges of 10 daN and higher. |
![]() |
![]() |
Calibration: | According to SCHMIDT factory procedure |
Accuracy: | ±1% full scale (FS) or ±1 graduation on scale |
Scale diameter: | 54 mm |
Temperature range: | 10-45ºC |
Air humidity: | 85% RH, max. |
Housing material: | Die-cast aluminum |
Housing dimensions: | 220 x 74 x 42 mm (L x W x H) |
Weight, net (gross): | up to DN1-10K approx. 700 g (1200 g) DN1-20K-L and higher ranges (approx.) 900 g (2200 g) |
