TT3C Hand-held Cap Torque Meter
The CAP-TT03 is developed for easy in-field cap torque testing. It is basically a TT03 Torque gauge combined with a G1053 Universal V-jaw Grip. The compact aluminum housing can be used as handheld device or in a test stand setup.
The torque indicator is connected to a dedicated remote torque sensor with a jacobs chuck. Available in a capacity range from 135 Ncm to 1150 Ncm, it features a 2000 Hz sampling rate and has an accuracy of ±0.5% of full scale. The backlit display shows current and peak torque readings for each direction, set points, pass/fail indicators, rotation direction, units of measurements and an analog load bar with setpoint markers.
The TT03 is overload protected 150% of full scale (display shows “OVER” at 110% and above)
Data is exported through the USB connection with the included USB data cable and the included MESUR® Lite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.
Features
- For cap diameters of 16,5 - 39,0 mm
- High-speed 2000 Hz sampling rate
- Single Reading USB data output
- Programmable set points with pass/fail indicators
- Battery or AC operation
- Configurable audio alarms and key tones
- Live load bar graphs with set point markers
- CE mark
- Peak memory for clockwise and counter clockwise readings saved and displayed
- Made in the USA
The CAP-TT03C is supplied as a complete kit including:
- Force display with torque sensor

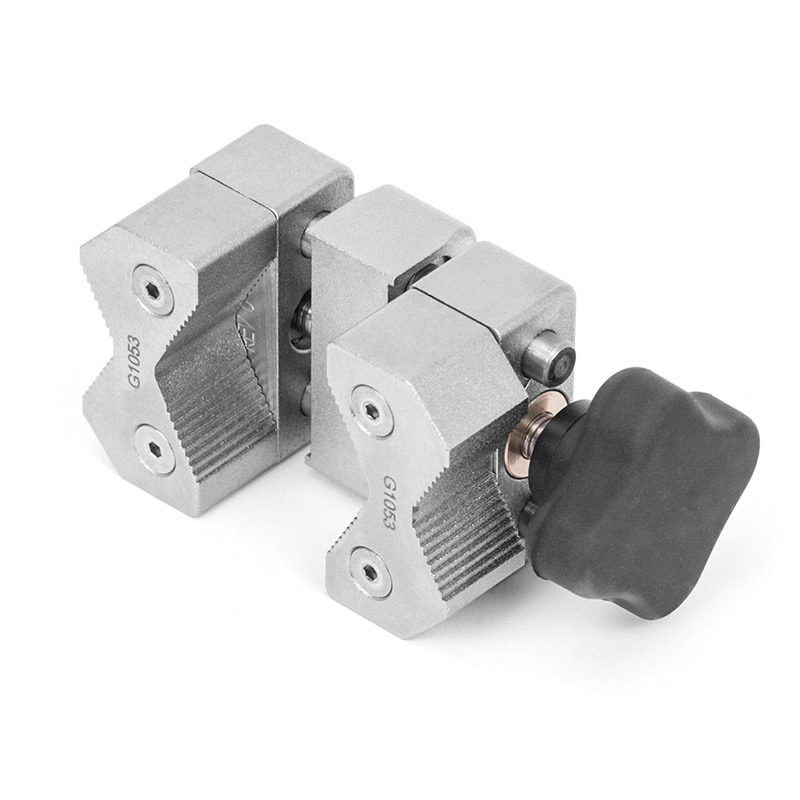

- G1053 cap grip
- Universal AC adapter
- Rechargeable battery
- Chuck key
- Quick-start guide
- USB cable
- Basic data transfer software
- NIST traceable calibration certificate without data
- Soft padded carrying case
| Model | Ncm | lbF-in | ozF-in |
|---|---|---|---|
| MTT03C-12 | 135 x 0,1 | 12 x 0.01 | 192 x 0.2 |
| MTT03C-50 | 570 x 0,5 | 50 x 0.05 | 800 x 1 |
| MTT03C-100 | 1150 x 1 | 100 x 0.1 | 1600 x 2 |
Dimensions
Dimensions of the TT03C Torque Tester ,
All dimensions are noted in Inches with metric sizes in [mm] behind.
| Capacity in Nm | Weight in kg | A | B | C | ØD1* | ØD2* |
|---|---|---|---|---|---|---|
| 11,3 | 0,18 | 78,7 mm | 50,8 mm | 40,6 mm | 27,9 - 39,4 mm | 16,5 - 27,9 mm |
| * Reverse jaws to switch from ØD1 to ØD2 | ||||||
CAP-HT-RS Hand-held Cap Torque Tester with Data Output & Memory
- RS-232C, Digimatic and Analog outputs
- 1000 Data memory for computer download
More details
Series-TT03 Digital Torque Meter for torque testing applications
- Peak memory for clockwise and counter clockwise readings saved and displayed
- High-speed 2,000 Hz sampling rate
More details
G1058 Universal Cap Grip
- Adjustable posts and vise-action mechanism accommodate a wide range of sample shapes and sizes
- May be used in torque and force measurement applications
- Works manualy and in combination with torque and force test stands
More details
Accessories
Mesurgauge / Mesurgauge plus Load & Travel Analysis Software
- Sends data from a force or torque gauge and travel display to a PC for further analysis
More details
Specifications
| Accuracy | ±0.5% of full scale ±1 digit |
| Sampling rate | 2000 Hz |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery Life | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| Measurement units | lbFin, ozFin, kgFmm, Ncm (depending on model) |
| USB Output | Individual data point output by pressing DATA key. Configurable up to 115,200 baud. |
| Configurable Settings | Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration |
| Safe overload | 150% of full scale (display shows “OVER” at 110% and above) |
| Weight | 0.8 kg |
| Environmental requirements | 5°C ~ 45°C, <96% humidity (non-condensating) |
| Warranty | 3 Years |
