TI-45N-HD Ultrasonic Wall Thickness Gauge
Measuring Range in Steel
0.040 - 8.00 inches
1.00 - 200.0 mm

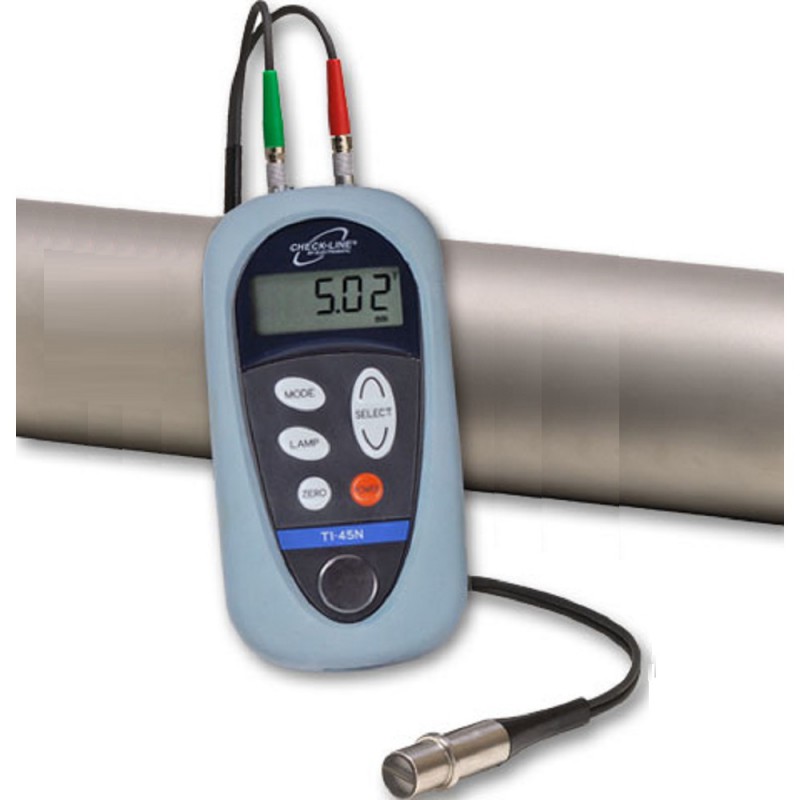

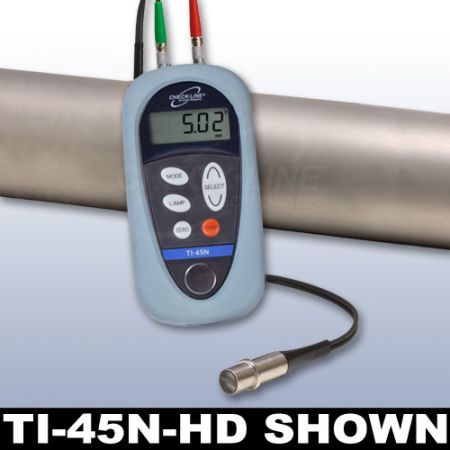

The new CHECK-LINE TI-45NHD Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

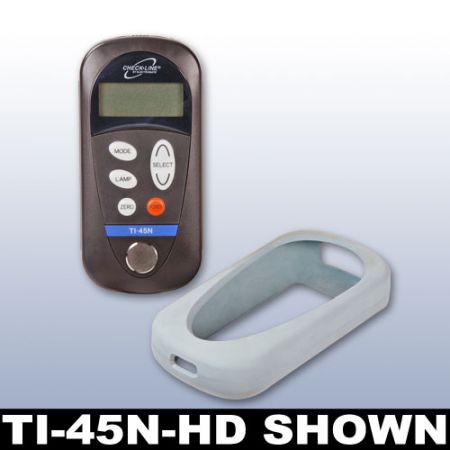

The attractive, ergonomic housing design is extremely compact, lightweight and rugged. It fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas.
0.040 - 8.00 inches
1.00 - 200.0 mm
The new CHECK-LINE TI-45NHD Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The attractive, ergonomic housing design is extremely compact, lightweight and rugged. It fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas.
Features
- Resolution of 0.001" (0.01mm)
- Extremely compact & lightweight
- Switch-selectable units - inches or mm
- Built-in calibration test plate
- Quick display update with last reading retained on the display
- Display symbols alert user to poor coupling and low battery conditions

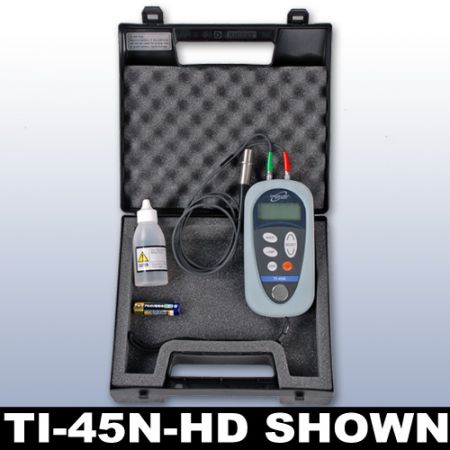

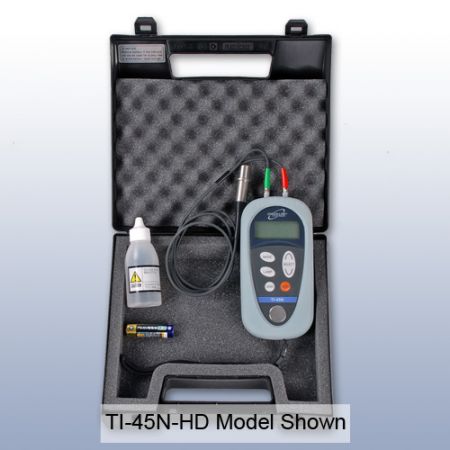

The TI-45N is supplied as a complete kit with the gauge and wrist strap, probe and cable assembly, 2 oz. bottle of coupling fluid, batteries and instruction manual -- all supplied in a fitted, hard plastic carrying.
 | Minimum Radius for Convex Surfaces | 25.4 mm (1") |
| Minimum Radius for Concave Surfaces | 76.2 mm (3") | |
 | Minimum Headroom | 76.2 mm (3") |
 | Minimum Sample Diameter | 12.7 mm (0.5") |
 | Minimum Substrate Thickness - F | na |
| Minimum Substrate Thickness - NFe | na |
TI-SB Steel Test Blocks
- Precision Machined and Finished: Each test block is precision-machined and surface-finished to tight tolerances, ensuring excellent acoustic coupling and long-term dimensional stability.
- Includes NIST Certificate and Test Data: Supplied with a full calibration certificate traceable to NIST standards, including measured values and test data for complete verification accuracy.
- Includes Wooden Storage Box: Delivered in a durable hardwood storage case that protects the block from environmental effects and mechanical damage during storage or transport.
More details
TI-SB4 Steel Test Block
- Type: Uncertified steel test block for routine verification
- Design: Includes 4 and 6 precision-machined steps for quick accuracy checks
- Purpose: Designed for convenient confirmation of ultrasonic thickness gauge calibration without requiring NIST certification
More details
Specifications
| Range: | 1.0 - 200.0 mm (0.040 - 8.000") |
| Resolution: | 0.01 mm (.001") |
| Display: | 4½ - digit LCD display, 10mm high with push button illumination |
| Velocity Range: | 1.000 – 12.000 m/sec (3.250 – 39.000 ft/sec) continuously adjustable |
| Probe: | 5 MHz, 10 mm (.39") diameter without Centering Shell |
| Cable: | 1m (39") 2-wire, long cable with quick-disconnect connectors |
| Minimum Pipe Size: | 30mm nominal (1") steel pipe |
| Temp. Limits: | Ambient: -5 to 50° C (25 to 125° F) Material: -10 to 60° C (-15 to 140° F) |
| Calibration Plate: | 6.35mm (0.250") steel plate, built into the front of the housing |
| Battery Type: | Two AA batteries |
| Battery Life: | 200 hours |
| Weight: | Gauge: 200 g (7 ounces) |
| Size: | 131 x 68 x 29 mm (5.2" x 2.7" x 1.1") |
| Warranty: | Gauge: 1 year Probe: 90 days |
| Accessories Included: | Fitted, hard-plastic carrying case, probe shell attachment, 2 oz. bottle of coupling fluid, 1 spare battery and operating instruction guide |
