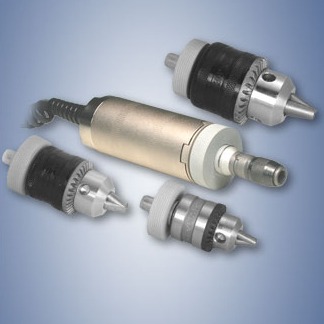

STH Series Universal Torque Sensors for bi-directional testing
The Universal Torque Sensors of the STH series are the perfect solution for bi-directional torque measuring instruments that work with different sizes and is available in capacities from 10 ozin (7 Ncm) to 100 lbin (1150 Ncm). The STH stands out with its amazing overload protection. Three exchangeable drill chuck capacities plus a a bit holders are also available.
Features
- Member of the BGI family of interchangeable sensors
- "Personality module" holds all calibration and configuration data
- Outstanding overload protection
- Interchangeable chucks (order separately)
- Accuracy: ± 0.20% of full scale ±1 digit + BGI
- Weight: From 1.4 lbs (0.6 kg)
- Warranty: 3 years
- NIST-traceable certificate of calibration included
| Model | Ranges | Resolution | |||
| STH10Z | 10 oz-in 7 kg-mm 7 N-cm | 0.01 oz-in 0.005 kg-mm 0.005 N-cm | |||
| STH20Z | 20 oz-in 14 kg-mm 14 N-cm | 0.02 oz-in 0.01 kg-mm 0.01 N-cm | |||
| STH50Z | 50 oz-in 36 kg-mm 35 N-cm | 0.05 oz-in 0.05 kg-mm 0.05 N-cm | |||
| STH12 | 12 lb-in 140 kg-mm 135 N-cm | 0.01 lb-in 0.1 kg-mm 0.1 N-cm | |||
| STH50 | 50 lb-in 580 kg-mm 570.0 N-cm | 0.05 lb-in 0.5 kg-mm 0.5 N-cm | |||
| STH100 | 100 lb-in 1150 kg-mm 1150 N-cm | 0.1 lb-in 1 kg-mm 1 N-cm |

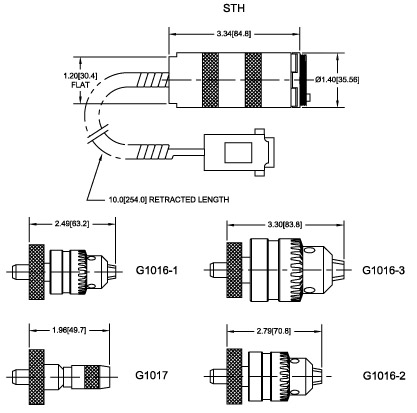

Dimensions
| Chuck Min / Max Opening | |||
| G1016-1 | G1016-2 | G1016-3 | G1017 |
| 0.028"-0.25" | 0.062"-0.375" | 0.078"-0.5" | Bit holder for STH, 1/4" hex |
Related Products
BGI Remote Sensor Force / Torque Gauge
- Fully interchangeable force and torque BGI Force/Torque Sensors
- Unlimited number of sensors possible due to unique design
- RS-232, Mitutoyo and analog outputs
More details
Specifications
| Accuracy: | ±0.20% of full scale; 1 digit + BGI |
| Weight: | From 1.4 lbs (0.6 kg) |
| Warranty: | 3 years |
