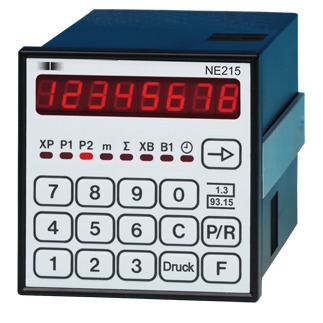

NE215 Multifunctional Counter with 2 presets and Preliminary testing by PTB

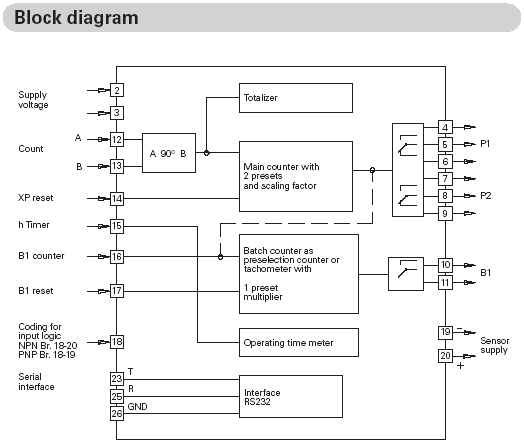

IVO multifunctional counter with two presets. Can be used in a wide variety of applications. Can be programmed as preselection counter, time counter, totalizer.Block diagram

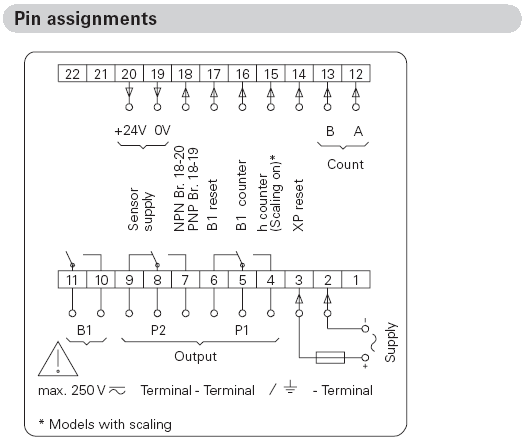

Pin assignment
Features
- Main counter with two presets
- Batch counter with preset value and multiplier (1...999)
- Models with scaling factor 0.0001...99.9999
- Interface RS232, RS485
Dimensions
Suitable encoder and printer Preliminary testing PTB

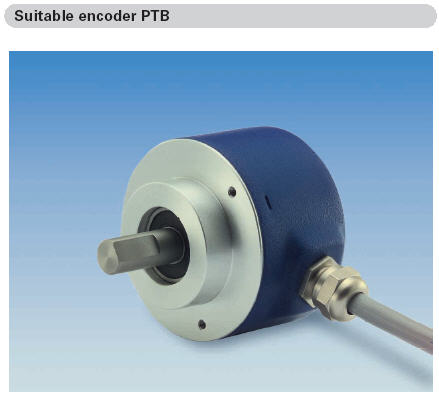

Suitable encoder PTB GPI0W-Series

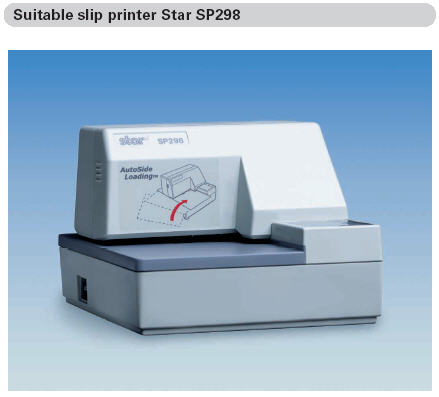

Suitable slip printer Star SP298
Suitable Encoder Models:
GPI0W.5102239 50 pul./rev., synchro fl. M4, cable 2 m radial
GPI0W.0101215 500 pul./rev., clamp. fl. M3, cable 2 m axial
GPI0W.1101439 50 pul./rev., clamp. fl. M4, cable 5 m axial
GPI0W.1101415 500 pul./rev., clamp. fl. M4, cable 5 m axial
GPI0W.1101639 50 pul./rev., clamp. fl. M4, cable 10 m axial
GPI0W.1101615 500 pul./rev., clamp. fl. M4, cable 10 m axial
Suitable encoder PTB GPI0W-Series
Suitable slip printer Star SP298
Suitable Encoder Models:
GPI0W.5102239 50 pul./rev., synchro fl. M4, cable 2 m radial
GPI0W.0101215 500 pul./rev., clamp. fl. M3, cable 2 m axial
GPI0W.1101439 50 pul./rev., clamp. fl. M4, cable 5 m axial
GPI0W.1101415 500 pul./rev., clamp. fl. M4, cable 5 m axial
GPI0W.1101639 50 pul./rev., clamp. fl. M4, cable 10 m axial
GPI0W.1101615 500 pul./rev., clamp. fl. M4, cable 10 m axial
If the desired model is not shown in the list of prices, price is on request
Specifications
| Display: | 7-segment LED-display 8-digit display of real value, 7.6 mm high minus sign for negative values |
| Operation, keypad: | Front membrane w. short-stroke keys |
| Front dimensions: | DIN housing, 72 x 72 mm |
| Mounting: | Front installation |
| Fastening: | Clamping frame |
| Weight: | Version AC: ca. 450 g Version DC: ca. 320 g |
| Type of connection: | Plug-in screw terminals Grid 5.08 mm / 3.81 mm |
| Core cross-section: | Max. 1.5 mm2 |
| Housing material: | Polycarbonate black, UL 94V-0 |
| Membrane material: | Polyester |
| Supply voltage: | Choice of two voltages via switch on device. When supplied, always higher voltage adjusted. 115 / 230 VAC ±10 % (50 / 60 Hz) 24 VDC ±10 %, 5 % residual ripple |
| Power consumption: | 7 VA, 6 W |
| Sensor supply: | 12...26 VDC / max. 80 mA |
| Signal inputs: | Optocoupler PNP, NPN Input resistance 1.65 kOhm Control current 9...16 mA |
| Input counting rate: | Max. 10 kHz |
| Control inputs: | 1 control input for XP reset 1 control input for B1 reset |
| Signal outputs: | Can be programmed as momentary or permanent signal Impulse time can be programmed 0.01...9.99 s, tolerance: +0,01 s |
| Relay signal outputs: | 3 floating center-zero relays Internal spark suppression Max. switch. voltage 250 VAC Max. switch. power 1 A Max. switch. capacity 150 VA / 30 W |
| Data storage: | > 10 years via EEPROM |
| Counting mode of signal inputs A / B: | A 90° B x1 |
| Ambient temperature: | 0...+50 °C |
| Storage temperature: | -20...+70 °C |
| Relative humidity: | Max. relative humidity 80 %, at 25 °C, non-condensing |
| Protection: | Front IP 65 to DIN 40050 |
| General rating: | EN 61010 Part 1 - Protection class II - Overvoltage protection categ. II - Contamination factor 2 |
| Interference immunity: | EN 50082-2 |
| Emitted interference: | EN 50081-1 |
