H127 Stroke counter with turn reset

Counter available in various models described below.

Features

Counting in direction of stroke to be defined (adding)
Stroke extent: Min. 38°, max. 60°
Stroke level adjustable at choice on drive shaft. Stroke lever returns automatically to initial position.
Max. 500 strokes/min.

Dimensions

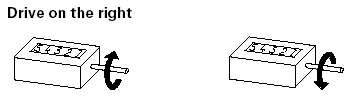

Sense of rotation


Right turn to reset Away from user I	Right turn to reset Towards user II

Left turn to reset Away from user I	Left turn to reset Towards user II

If the desired model is not shown in the list of prices, price is on request

Downloads

Datasheet H127

Specifications

Digit size:	Approx. 4.5 mm high, white on black background
Reset:	By turning the fixed knurled knob
Housing material:	Gray plastic
Base plate:	Steel - 2 mm thick, galvanized
Weight:	Approx. 90 g
Display:	5-digit, 99 999
Drive shaft:	Right or left, Ø 4 mm
Counting mode:	In direction of stroke to be defined, adding 1 stroke = 1 digit
Stroke extent:	Min. 38°, max. 60°
Stroke lever:	Adjustable at choice on drive shaft. Stroke lever returns automatically to initial position.
Max. Speed:	Max. 500 strokes/min.
