G1110 Puncture Fixture
The G1110 Puncture Fixture is designed for assessing the puncture resistance of plastic films and other materials up to 5 kN, in accordance with ASTM D5748 standards.

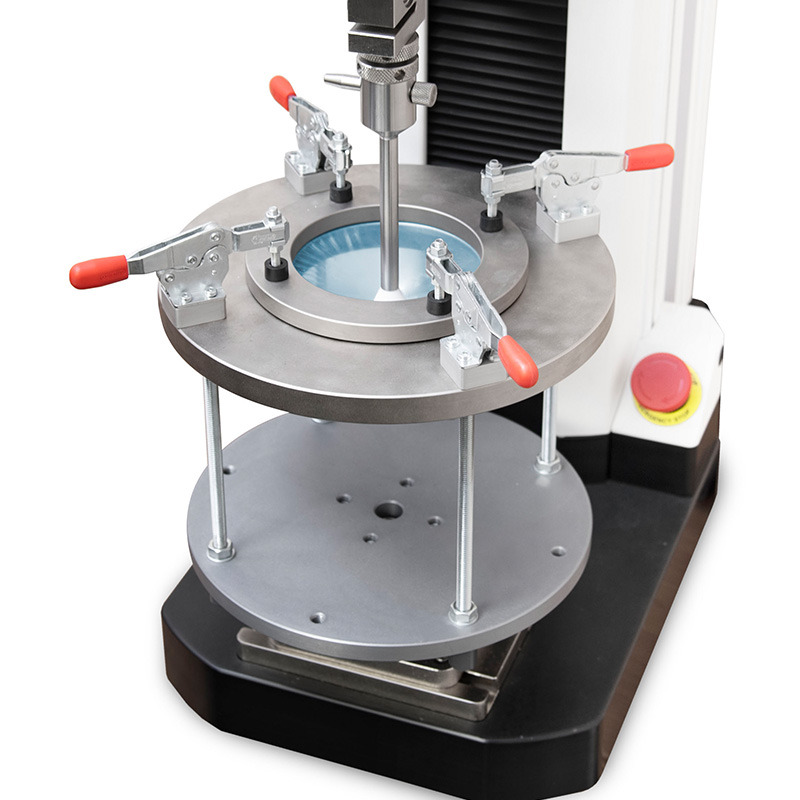

The fixture consists of a frame with eye-end mounting and four toggle clamps, a sample compression ring and a plunger, with eye-end mounting.
The fixture's ample height accommodates materials with significant elongation. The four toggle clamps clamp the compression ring with concentric ridges and effectively secures the material. Additionally, the included a plunger with a ball probe stretches and punctures the sample.
Please note that eye-end adapters are required at both ends to attach it to force gauges or force sensors.
The G1110 is compatible with F755 and F1505 motorized force testers.
Features
- Secures materials for puncture testing, as per ASTM D5748
- Generous head room accommodates materials with long elongation
- Includes fixture and probe
- Comaptible with F755 and F1505 motorized force testers
- Integrated eye-end mounting for fixture and probe
The G1110 puncture fixture is shipped as shown at left, and includes the following accessories:
- Fixture assembly
- Sample compression ring
- Puncture plunger
- 2 Anchor pins
Dimensions
All sizes are noted in inch with metric sizes in [mm] behind.
Related Products
G1009 Compression Plates
- Available in two sizes, 51 mm and 76,8 mm,
- Available with and without vented channels
- G1009 and G1009-2 include a #10-32 M/M stud with jam nuts G1009-1 and -3 include a 5/16-18M/M stud with jam nuts
More details
G1087 Compression Plates, High Capacity
- Concentric grooves aid in sample positioning
- Select from two sizes
- Integrated eye end mounting
More details
G1008 and G1015 Paper & Film Grips
- Available in four widths from 31,8 tot 177,8mm
- Capacity 500 N
- As per ASTM F88/D1876 and related standards.
More details
Specifications
| Capacity | 5 kN |
| Weight | Fixture: 8.6 kg Probe: 0.2 kg |
